for continuous thickening of sludges and slurries

WELL PROVEN TERMS OF:

• TECHNOLOGY

• QUALITY

• ECONOMY

PROCESS DESCRIPTION:

After the sludge has been conditioned by the VA - Injector Mixer HPI, it flows onto the proven VA - Belt Thickener through the new inlet box. Out of the inlet box the sludge is distributed evenly over the entire width of the filter belt of the VA - Belt Thickener. VA - Shifting Ploughs shift the sludge layer many times and thus substantially improve the filtrate removal. At the end of the thickening zone the already thickened sludge is further compressed by a ramp. Subsequently, the thickened sludge is discharged into a sludge-hopper

• Efficient and economical sludge thickening according to the principal of filtration by gravity
• High continuous throughput capacity
• High thickening performance of 6 - 8 % DS
• High solids capture = 98 % - clear filtrate
• Economical operation due to low polymer and energy consumption
• Fully automatical, easy to service, easy to operate

TECHNICAL DESCRIPTION:

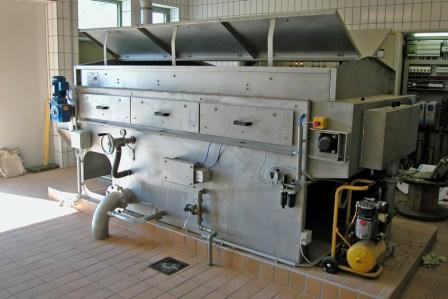

VA - Belt Thickeners are well known for their high quality standard. The thickeners are designed for round the clock operation 365 days a year. The stainless steel frame allows operation under difficult circumstances. The roller bearings are specially sealed agains moisture. The design of the VA - Belt Thickener allows easy access to facilitate maintenance.
